Harmony PF is a high gold, palladium-free casting alloy. The well-balanced composition of this alloy means a wide range of indications can be produced and veneered with the laboratory composite SR Nexco®.
Indications*
- Inlays
- Onlays, 3/4 crowns, crowns
- Telescope crowns, conus crowns
- Bridges
- Wide-span bridges
- Cast posts / cores, bars, attachments
- Implant-supported superstructures
- Partial dentures
Technical Data

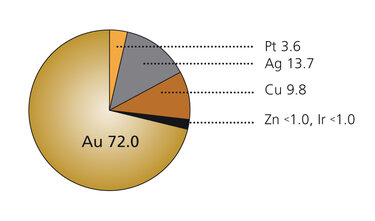

| Composition (%): | Au 72.0 | Pt 3.6 | Ag 13.7 | Cu 9.8 | Ir <1.0, Zn <1.0 |
| ISO | 22674:2016 |
| ADA Class | High Noble |
| Type / Color | 4 / Yellow |
| Density (g/cm³) | 15.6 |
| Melting Range (Solidus/Liquidus): | 900 - 940 °C |
| Elastic Modulus (GPa): | 135 |
| As Cast Softened Hardened | |
| Vickers Hardness: | 230 150 230 |
| Tensile Strength (MPa): | 650 450 580 |
| 0.2% Proof Stress (MPa): | 525 315 485 |
| Elongation (%): | 18 40 24 |
Advantages
- Pd-free
- Clinically proven
- Wide range of indications
- Excellent resistance to oral conditions
- Veneering with laboratory composites (e.g. SR Nexco)
- Tested biocompatibility
Processing Data
| Investment Material: | Phosphate-bonded / Gypsum-bonded |
| Preheating / Burn- out Temperature: | 650 - 760 °C |
| Crucible | Carbon crucible / Ceramic crucible |
| Casting Temperature: | 1000 - 1050 °C |
| Casting Temperature: | SR Nexco |
| Laser Welding Wire: | Laser C&B Yellow |
*See TYPE CLASSIFICATION DUE TO PHYSICAL PROPERTIES
